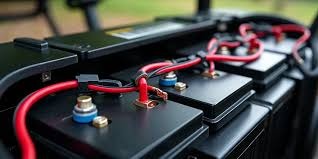

A 36-volt golf cart typically requires six 6-volt batteries wired in series or three 12-volt batteries connected the same way to achieve the correct voltage. These setups are the most common for reliable performance on the course. Choosing the right golf cart batteries is essential for range, speed, and longevity.
To reach 36 volts, batteries must be wired in series, which adds their voltages while keeping the amp-hour capacity the same. The two most popular configurations are:
Six 6-volt batteries: This is the traditional and most widespread setup in older and many current 36V models from brands like Club Car and EZ-GO.
Three 12-volt batteries: Less common but still used, especially when owners prefer fewer but larger batteries for easier handling.
Both configurations deliver 36 volts to the motor controller. The choice often depends on the cart’s battery compartment design and personal preference. Modern lithium drop-in replacements are now available that match these layouts but provide significantly better performance.
Range varies widely based on battery type, capacity, terrain, rider weight, tire pressure, and driving habits. Traditional lead-acid batteries in a 36V system typically deliver 20–35 miles per charge with 200–225 amp-hour batteries. Flat courses and careful driving can push toward the higher end, while hills and heavy loads reduce it.
Lithium-ion (LiFePO4) batteries dramatically improve range. The same physical space that holds six 6V lead-acid batteries can accommodate LiFePO4 packs rated at 100–160 Ah usable capacity, often achieving 45–70 miles on a single charge. Many owners report doubling their previous lead-acid range after switching to lithium.
Real-world factors that affect distance include:
Terrain: Hills consume significantly more energy.
Weight: Extra passengers or cargo shorten range.
Temperature: Cold weather reduces battery efficiency.
Speed: Constant high speeds drain batteries faster.
Stock 36-volt golf carts generally reach top speeds of 12–15 mph. This is the standard governed speed set by manufacturers for safety on golf courses. Club Car and EZ-GO 36V models from the 1990s through early 2010s typically max out around 14–15 mph.
Aftermarket upgrades can increase speed:
High-speed motor
Upgraded controller
Higher torque gears
Lithium battery conversion (provides more consistent voltage under load)
With these modifications, many 36V carts can reach 18–22 mph while maintaining good hill-climbing ability. However, faster speeds reduce range, so owners often choose a balance that suits their needs.
Lead-acid batteries remain the budget option but require regular maintenance: checking water levels, cleaning terminals, and equalizing charges. They weigh approximately 60–70 lbs each, so a full set of six can exceed 360 lbs.
LiFePO4 lithium batteries offer major advantages:
Up to 5–8 times longer lifespan (2,000–5,000 cycles)
Half the weight or less
No maintenance
Faster charging
Greater usable capacity (can discharge to 100% vs. 50% recommended for lead-acid)
Built-in battery management systems (BMS) for safety
Although the upfront cost is higher, the total cost of ownership over 8–10 years is often lower due to longevity and reduced replacement frequency.
1. Match your cart’s voltage and physical compartment size.
2. Consider your typical usage—longer courses or hilly terrain benefit more from lithium.
3. Check amp-hour ratings and compare usable capacity.
4. Invest in a compatible charger, especially for lithium packs.
5. Store the cart properly in extreme temperatures.
Regular inspection and cleaning extend battery life regardless of type.
A 36-volt golf cart most commonly uses six 6-volt or three 12-volt batteries in series. Modern lithium options are transforming performance, offering greater range (up to 70 miles), lighter weight, and virtually no maintenance. Whether sticking with lead-acid or upgrading to LiFePO4, understanding your configuration and needs ensures years of reliable enjoyment on the course.
